Toiletries Flip Cap Visual Inspection System for Ring Broken Defects Detection
| Item | Toiletries Flip Cap Visual Inspection System for Ring Broken Defects Detection | Main Material | Stainless steel |
| Weight | 500kg | Size | 4250*1650*1860mm |
| Software Algorithm | Deep Learning | Voltage | Ac220/50Hz |
| Current | 4kw | Air Pressure | 0.5-0.8Mpa |
| Transfer Method | Lossless Delivery | Detection Status | Online Real-Time Detection |
| Detection Method | High-Speed Industrial Camera | Number Of Camera | Depending on the specific situation |
Inspection standards
| Item | Camera | Position | Inspect | Precision | Accuracy | Speed |
| KVIS | 1 | special area | Black sopt,dirt,size,burr,flash,hole,sealing ring broken,etc. | >0.5mm | 99% | 300p-600pcs/min |
| 1 | top area | >0.5mm | ||||
| 1 | upper area | >0.5mm | ||||
| 4 | bottom area | >0.5mm |
Inspection details

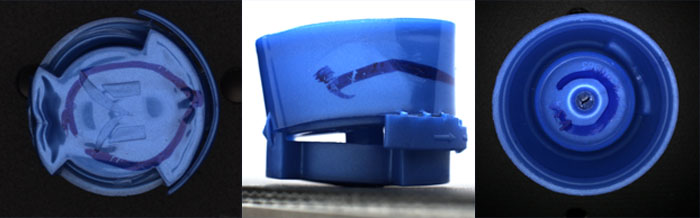

The design scheme uses 7 sets of high-pixel area array industrial cameras and high-performance strobe light sources to conduct comprehensive inspections on the concave surface of the lower cover, the side of the lower cover, the side of the upper cover, and the top surface of the upper cover. The entire set of equipment is designed and tested The speed is 300-600 pieces/minute, and the equipment can operate 7*24 hours a day. Unqualified products are automatically eliminated online, and qualified products are counted and packed.
Equipment features:
| 1.AI algorithm: high stability, adapting to the environment and background disturbance; different defect samples can be automatically identified after training |
| 2.Dataization: Independent database, save multiple samples, analyze non-good products, and retain history |
| 3.Multi-orientation: 360 ° comprehensive inside and outside the samples |
| 4.High precision: detection accuracy can be high |
| 5.Modularization, can flexibly increase or decrease the detection function according to customer actual needs |
| 6.Easy to operate: It is easy to operate and easy to maintain |
| 7.Safety: Medical grade material manufacturing, fully compliant with medical supplies production environment |
Company profile
KEYETECH has always been committed to the application of artificial intelligence in the field of vision technology, replacing human eyes and brain decision with machine vision and AI reasoning calculations, and integrating the quality detection and sorting to industrial products in traditional manufacturing to make the production more digitization , Intelligence, visualization, and persistence. Also greatly improves the efficiency and accuracy of industrial detection, and enhances the intelligent level of the manufacturing industry.
After-sale service:
The company has a complete technical service team and rapid response mechanism, and has dedicated service specialists for each customer, who can receive technical consultation and fault reports from customers at any time. And to ensure rapid response to customer emergencies, to ensure that customers receive satisfactory service.During the epidemic or due to special reasons, when after-sales engineers are unable to reach the site, the service center can remotely adjust customer equipment for troubleshooting and technical consultation.
After the equipment arrives at the customer site, the after-sales engineer arrives in time to carry out equipment installation, commissioning, and operation training. The product quality of the whole machine is traceable, and the quality warranty period is 1 year from the date of acceptance. In the event of non-human faults during the warranty period, after-sales engineers will quickly arrive at the site or provide remote guidance for free maintenance.
|
|
