| Brand Name : | KEYE |
| Model Number : | Kvis-Sc02(A-21） |
| Certification : | No |
| Price : | Negotiable |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 1set per 8 weeks |
| Delivery Time : | 4 to 8 weeks |

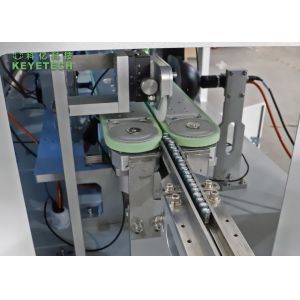

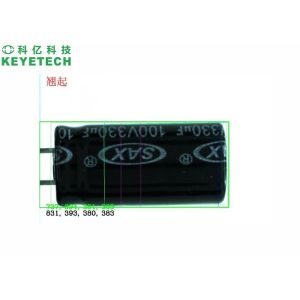

A Robust Vision Inspection System , Detecting Capacitor Defects of Film
Detection Principle
(1)KEYE TECH has developed a capacitance detector with a double valve rejection device for the first time in the industry. The rejection system composed of double air valves can complete the rejection command more perfectly, greatly reduce the false and missed detection rate during the capacitor external inspection process, and further satisfy the customers' pursuit of product quality.
(2)Transmitted the shooting high-pixel sample image to image processing software by industrial camera, detecting and
determining a good product and defective product via AI manually intelligent algorithm.
(3)AI artificial intelligence algorithm to determine the pros and cons of products, to achieve automated production lines
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
System Structure
| Item | A Robust Vision Inspection System | Main Material | Stainless steel |
| Software Algorithm | Deep Learning | Voltage | Ac220/50Hz |
| Voltage | 2.5kw | Air Pressure | 0.2-0.5Mpa |
| Transfer Method | Lossless Delivery | Detection Status | Online Real-Time Detection |
| Detection Method | High-Speed Industrial Camera | Number Of Camera | Depending on the specific situation |

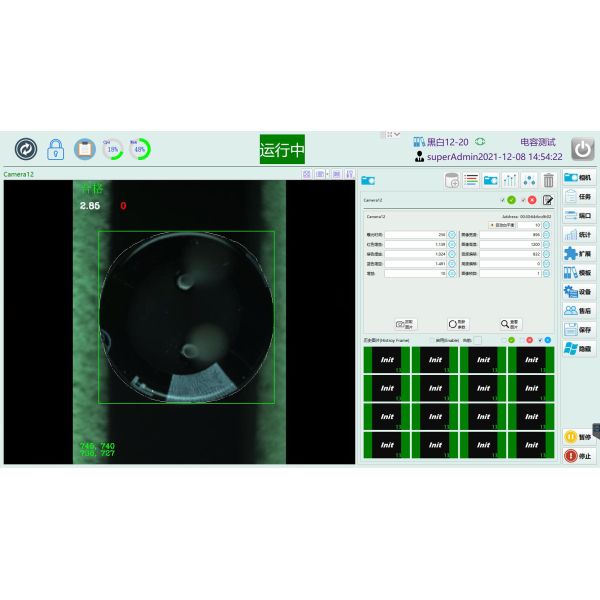

Inspection Software:1)Enabling and disabling the system detection function;2)Adjustment of the parameters and accuracy of detection indicators.Template sampling and storage, sample detection information storage and recall;3)Camera calibration;Display system real-time production information;4)Perform authority management according to the login account;5)Operation and adjustment of the mechanical parts of the system;6)Additional functions added due to customer needs.
Hardware Part:1)Trigger the light source strobe;2)Trigger the camera to take a photo;3)Trigger the solenoid valve to jet off waste products;4)Control the belt speed;5)Emergency treatment for system jams or similar situation.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Machine Processing
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Anhui Keye Intelligent Technology Co.,Ltd
Address:168 Tangkou Road,Taohua Industrial Park,Hefei,Anhui
Tel:+86 186 5518 0887(James)/+86 173 5515 4206(Amy)
Email:clerk-zyl@keyetech.com
|
|
